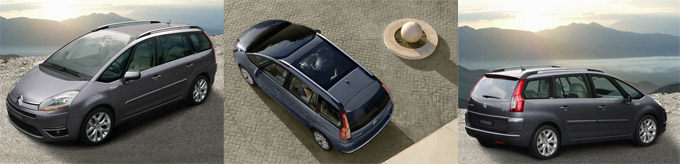

Citroen Grand C4 Picasso

With relatively small dimensions (length - 4.59 m, width - 1.83 m, height - 1.66 m), Citroen Grand C4 Picasso has the most large in its class volume passenger and luggage offices.



The model has a wide-angle panoramic windshield, providing the driver with a vertical viewing angle of up to 70 ° (versus 35 ° for conventional minivans).



Thanks to large side windows, narrow front posts and a glass roof, the total glazing area achieves a record in the class of 6.4 m2 - which means the maximum filling the salon with light and joy.



The interior of the car is also unique - it has three rows of seats, andThe rear row is set above the average (landing "cinema") for a better view, and the original folding design allows you to easily and quickly transform the interior.



You can install three rows of seats to accommodate seven passengers, or fold the seats of the third row in a speciala niche, leaving room for 5 passengers and their bulk baggage, or even remove the second row of seats, having received the maximum amount for the transportation of a large cargo.






For the maximum comfort of passengers is provided 4-zone climate control system, multi-layer soundproof glass, air quality sensor in the cabin, HI-FI audio system with 8 speakers and reading lamps built into the backs of the front seats.







In the standard position of all seats the volume of the trunk is 576 l, and can be increased to 1951 l with fully folded seats.





Thanks to the separately opening window intrunk and adjustment of the "threshold" to load it very easily, and the rear air suspension, provides a smooth ride and constant ground clearance for any car loading.






The innovative minivan is equipped with gasoline engines 1.8i and 2.0i capacity of 127 and 147 liters. from. respectively, and various transmissions - mechanical transmission, "automatic", or robotic checkpoint "SensoDrive".




Original configuration, compact size with a large internal volume, convenient modular design salon-transformer and the unique functionality of the Citroen C4 Picasso make it a worthy continuation of the line of single-volume Citroen cars.

Specifications

Modification	C4 Picasso 1.8i 16V				C4 Picasso 2.0i 16V			C4 Picasso 2.0i 16V
Number of seats	7
Transmission	5MT				SensoDrive, 6			4AT
Compliance with emission standards	Euro IV
engine's type	EW7A				EW10A
Number of cylinders - Number of valves	4 - 16
Volume, cm3	1 749				1 997
Maximum power EEC (kW - rpm)	92 - 6,000				103 - 6,000
Maximum power DIN (hp - rpm)	127 - 6,000				143 - 6,000
The maximum torque EEC (Nm - rpm)	170 - 3 750				200 - 4,000
Tires	205/65 R 15	215/55 R 16	215/50 R 17	215/45 R 18	215/55 R 16	215/50 R 17	215/45 R 18	215/55 R 16	215/50 R 17	215/45 R 18
Front suspension	MacPherson
Rear suspension	elastic cross beam
EPS	basic equipment
Front brakes: disc brake disc thickness, mm / brake disc thickness, mm / brake caliper type	Ventilated, 283/26 / floating				Ventilated, 302/26 / floating
Rear Brakes: Brake Disc Diameter, mm / Brake Disc Thickness, mm / Brake Caliper Type	268/12 / floating
Length - Width - Width with expanded rear view mirrors, mm	4 590 - 1 830 - 2 100
Wheelbase, mm	2 728
Track: front - rear, mm	1 505 - 1 539
Overhang: front - rear, mm	995 - 867
Loading length with folded seats of the 2nd and 3rd rows (min-max), mm	1 800 - 2 060
Loading length with folded seats of the 3rd row (min-max), mm	1 030 - 1 160
Width of the loading aperture, mm	1 170
Trunk volume, dm3	208
The volume of the trunk with folded seats 3rd row (under the shelf), dm3	576 - 672
The volume of the trunk with the folded seats 2 nd and 3 rd series, dm3	893-1 951
Curb weight - Gross weight, kg	1 510 - 2 200				1 560 - 2 240			1 600 - 2 260
Payload, kg	690				680			660
Fuel tank capacity, l	60
Aerodynamic drag Cd	0.31
Maximum speed, km / h	185				195			190
Acceleration 0-100 km / h	11.9				11.5			12.2
Consumption of fuel
- urban cycle, l / 100 km	11.3				11.1			12.9
- suburban cycle, l / 100 km	6.1				6.2			6.6
- mixed cycle, l / 100 km	8.0				8.0			8.9
Emissions of CO2, g / km	190				190			211
